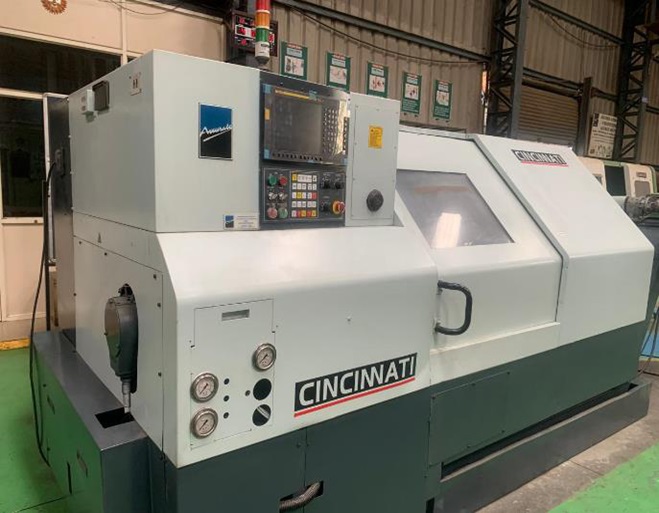

MAKE :- CINCINNATI
Model :- ERD
CNC :- FANUC OiTF Plus CNC Controller
Chuck Dia = 250 mm
Swing = 350 mm
ABC = 1200 mm
Spindle Speed 1500 RPM
Spindle Bore A 2- 5
Diplomatic Turret 8 Station (Heavy Duty)
Automatic lubrication
Flood Coolant
Chip convey our (scrapper type
Repeatability / Accuracy 0.010 mm

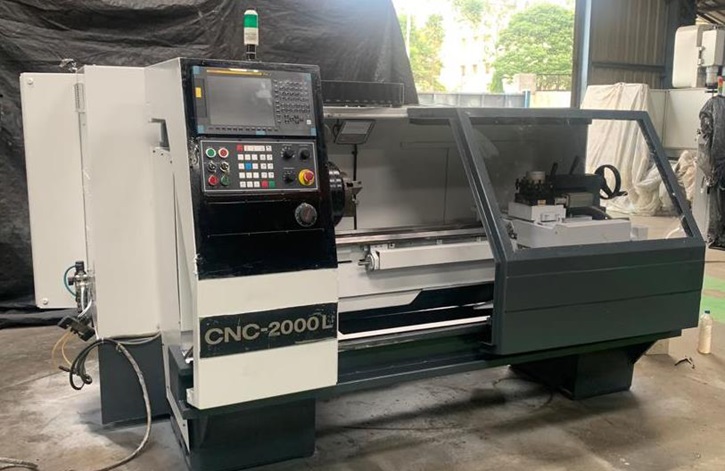

CNC :- FANUC OiTF Plus CNC Controller
Warranty = 1 year
Chuck Dia = 200 mm
ABC = 1300 mm
X= 260 mm
Z= 1100 mm
Swing on Carriage = 250 mm
Swing on Bed = 320 mm
Spindle Speed 2500 RPM
Spindle Bore A 2- 5
Pragati 4 Station turret
Automatic lubrication
Flood Coolant
Repeatability / Accuracy 0.010 mm

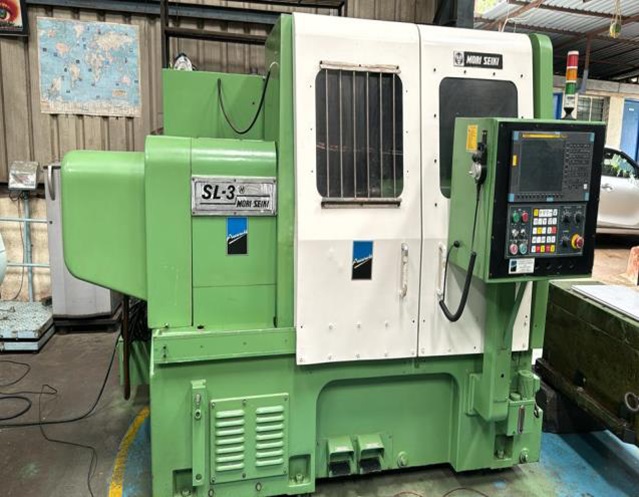

Make :- MORISEIKI
Model :- SL -3
CNC :- FANUC OiTF Plus CNC Controller (1Year Warranty)
Spindle 15 Hp
Chuck Dia = 250 mm
Swing = 320 mm
ABC = 600 mm
Spindle Speed 2200 RPM
Spindle Bore A 2- 5
Turret 8 Station (Motorized )
Automatic lubrication
Coolant system

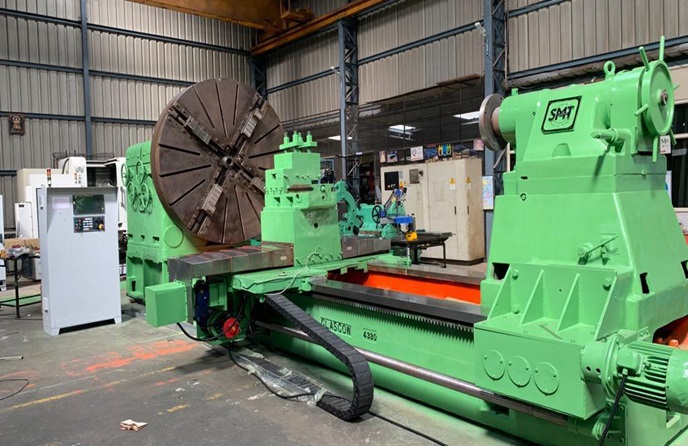

Make : Scottish Machine Tools (UK)
CNC : Fanuc OI TF CNC Controller
Chuck Diameter: 2300 mm
Swing over bed 2800 mm
Swing over on carriage approx. 2200 mm
Admit between center (ABC) 5000 mm approx,
Four jaw chuck
Chuck RPM 40
Geared headstock
Gear Box lubrication Automatic
Slide lubrication Automatic
Tailstock with motorized movement
Tailstock sleeve Diameter 200 mm
Sleeve Movement manual
Box Guideways (All Guideways grinding done)
Accuracy 0.05 mm
Square tool post 4 station
Approx. Weight 58 Tons
Machine Status – Ready to take production

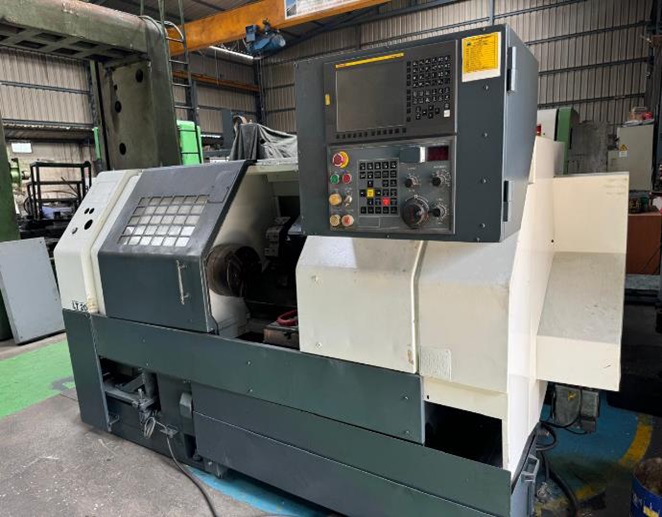

Make :- ACE MICROMATIC
Model :- LT 20
CNC :- FANUC OiTF CNC Controller
Servo Spindle 15 Kw
Chuck Dia = 250 mm
Swing = 350 mm
ABC = 600 mm
Spindle Speed 2500 RPM
Spindle Bore A 2- 5
Pragati 8 station Turret
Automatic lubrication
Flood Coolant
Chip tray with coolant pump

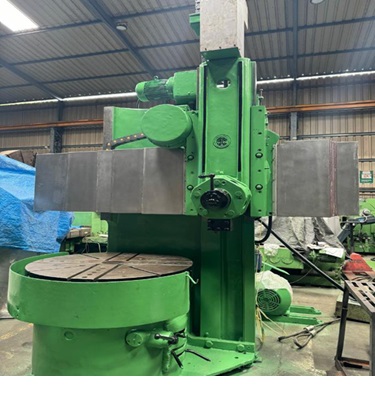

Make : STANKO 3C VTL
Readily available
Manual Turret
CNC :- FANUC OITF plus
Warranty :- 1 year for system
Chuck size : 1150 mm
Swing : 1300 mm
Height :- 1000 mm
Spindle rpm : 160 rpm
Spindle power :- 30 hp
Accuracy :- 0.01 per/ mtr
Coolant system provision
Automatic lubrication system

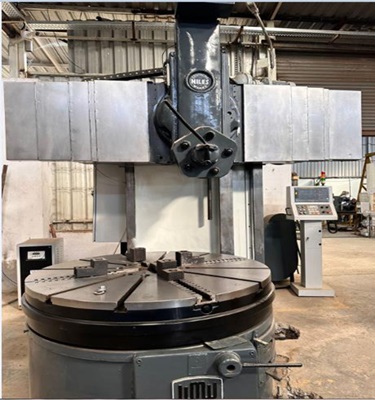

Make : WMW NILES
Readily available
CNC :- FANUC OITF plus
Chuck size : 1450 mm
Swing : 1600 mm
Height :- 900 mm
Spindle servo motor
Spindle rpm : 120 rpm
Spindle power :- 30 hp
Accuracy :- 0.01 per/ mtr
Coolant system provision
Automatic lubrication system

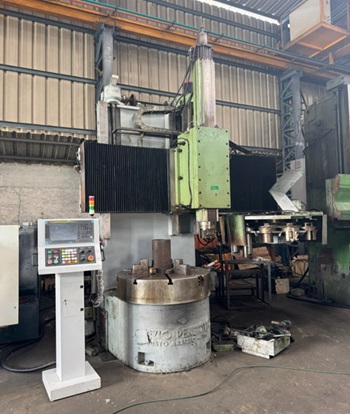

Make : PENSOTTI
CNC :- FANUC OITF plus
Warranty :- 1 year for system
Hydraulic power chuck size : 1000 mm
Swing : 1400 mm
Height :- 1100 mm
Spindle rpm : 260 rpm
Spindle power :- 30 hp
ATC :- 12 tools, through tool coolant
Coolant system
Accuracy :- 0.01 per/ mtr
Automatic lubrication system

Make : TITAN VTL
CNC :- FANUC OITF plus
Warranty :- 1 year for system
Chuck size : 2000 mm
Swing : 2200 mm
Height :- 1600 mm
Spindle servo motor
Spindle rpm : 150 rpm
Spindle power: hp
Accuracy :- 0.01 per/ mtr
Coolant system provision
Automatic lubrication system

Make : STANKO 3C
CNC :- FANUC OITF plus
Warranty :- 1 year for system
Chuck size : 1150 mm
Swing : 1300 mm
Auto turret
Height :- 1000 mm
Spindle rpm : 160 rpm
Spindle power :- 30 hp
Accuracy :- 0.01 per/ mtr
Coolant system provision
Automatic lubrication system

Make : BULLARD
CNC :- SIEMENS 8280
Warranty :- 1 year for system
Hydraulic power chuck size : 1300 mm
Swing : 1500 mm
Height :- 1400 mm
Spindle rpm : 160 rpm
Spindle power :- 30 hp
Accuracy :- 0.01 per/ mtr
Automatic lubrication system

Make : OHM
CNC :- FANUC OITF plus
Warranty :- 1 year for system
Chuck size : 1200 mm
Swing : 1500 mm
Height :- 1000 mm
Spindle rpm : 160 rpm
Spindle power :- 30 hp
Accuracy :- 0.01 per/ mtr
Automatic lubrication system

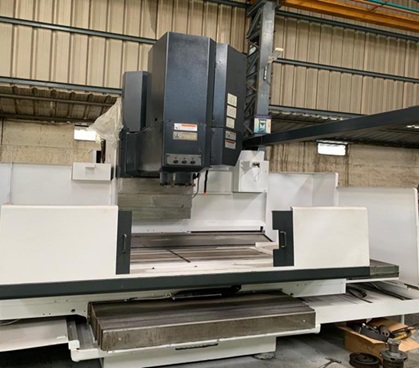

CNC :- Syntec CNC Controller
Table = 1200 mm X 600 mm,
X = 1050 mm
Y= 550 mm
Z = 550 mm
Height = 1000 mm
Spindle Speed 4500 RPM
Spindle Taper ISO 50
Automatic lubrication
Chilling Unit
Flood Coolant
Repeatability / Accuracy 0.010 mm

Make : - WMW Union
CNC Controller :- Siemens 828D,
X axis: 1,600 mm , Y -axis: 1,250 mm , Z axis: 900 mm
B AXIS (Rotary table) 0.001 deg index - able (its NC Rotary table)
Feed rate: (X / Y / Z) 0.001 - 5 m / min
Rapid traverse: (X / Y / Z) 10 m / min.
SPINDLE
Tool holder: SK 50
Speed range: 50 - 3,600 rpm.
Spindle Orientation through encoder
Spindle motor: 36 KW
ATC
No of Tools = 60
Tool holder: SK 50 , Tool Changer ARM type .
TOOL MAGAZINE
Through gear box,
Driven through VFD
PALLET CHANGER
Number of pallets: 2
Pallet Dimension 1000 x 1000 mm
Max. Table load: 2,000 kg
Pallet changer through motors with chain driven.
COOLANT SYSTEM
Coolant tank along with pump
Space requirement (LxWxH): 8 x 6 x 4 m

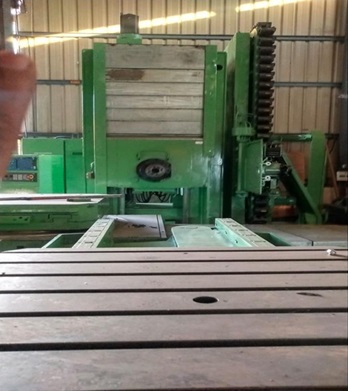

Make : - JURASTIC HBM MACHINE
X Axis: 3000 mm ,
Y Axis: 2000 mm ,
Z Axis: 2000 mm,
W Axis: 700-800 mm B Axis (Rotary table) 0.001 deg index , Encoder Feedback
Table Size : 2000 x 2000 mm
Weight carrying capacity : 18000 Kg Approx
Feed rate: (X / Y / Z) 0.001 - 5 m / min
Rapid traverse: (X / Y / Z) 8 / 6 / 8 per min
Repeatability :- 0.010 mm per meter
Geometry As per ISO
SPINDLE
Tool holder: ISO 50 , Speed range : 50 - 1250 rpm.
Spindle motor: 22 KW, 30 HP ,
Machine weight : - 38-40 Ton approx
